Heat-Transfer Sublimation Technology for Facade Profiles
Pak Alumex integrates advanced heat-transfer sublimation with architectural-grade powder coating, allowing civil engineers, facade contractors, and project developers to achieve warm timber visuals with structural metal strength.
How Our Wood Grain Transfer Process Works
The manufacturing sequence begins with an architectural polyester powder base coat (60–80 microns) applied electrostatically over chromate-free pre-treated 6063-T5 or T6 aluminium extrusions. After curing, a special wood grain film is wrapped tightly around the profile using a high-vacuum suction process.
The wrapped profile enters a sublimation oven at 190°C–200°C. Under controlled thermal conditions, organic pigments transition directly from solid to gas, penetrating deep into the powder coating layer rather than staying on the surface. This creates an integral, wear-resistant finish that replicates authentic wood grain patterns.
Key Advantages Over Natural Timber
- ✓ Fire Safety & Non-Combustibility: Class A fire rating compliant, suitable for high-rise facades and public building regulations.
- ✓ Zero Moisture Absorption: Will not swell, warp, split, rot, or attract termites in high-humidity or coastal environments.
- ✓ UV & Weather Stability: Formulated with outdoor-durable pigments tested against chalking, peeling, and color fading under severe sunlight.
- ✓ Low Maintenance Lifecycle: Requires no seasonal sanding, varnishing, or repainting; easily cleaned with standard water washes.

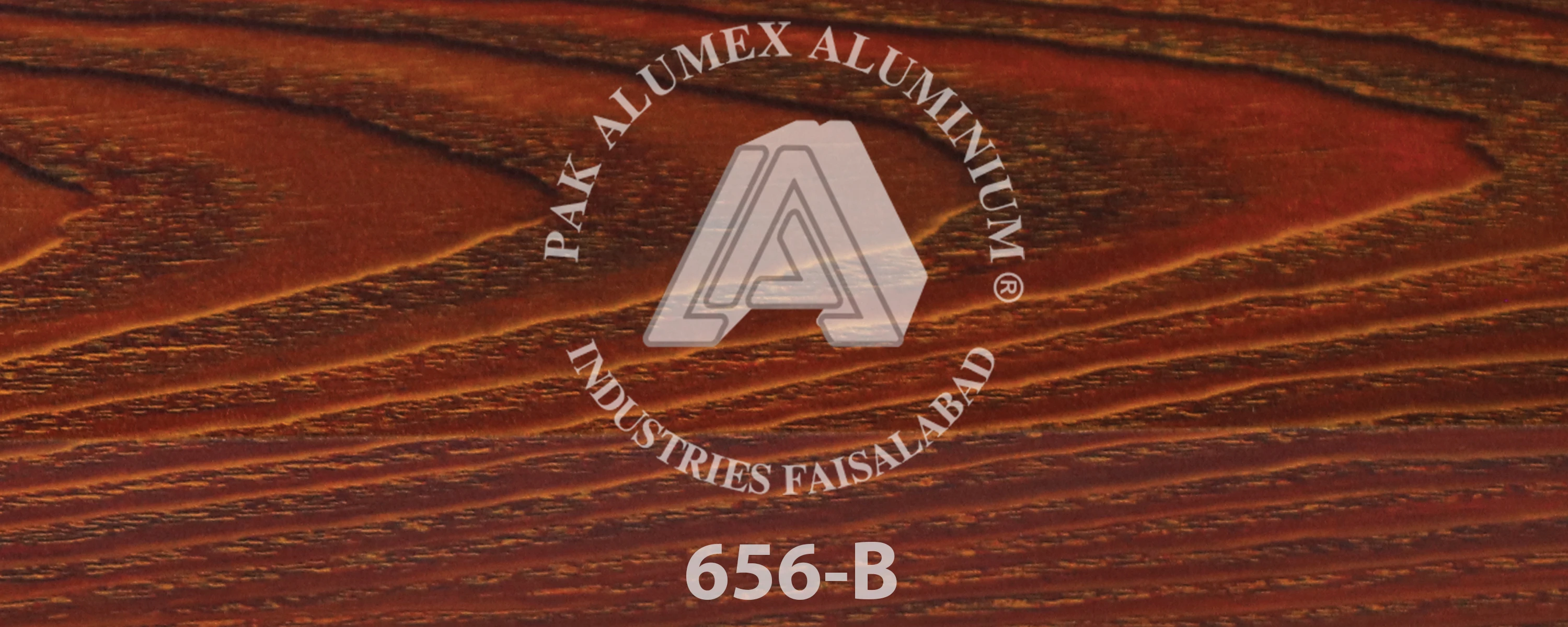

Wood Texture Pattern & Color Options
Select from our standard collection of architecturally approved wood grain finishes, including Oak, Walnut, Teak, Pine, and Mahogany shades formulated for exterior and interior applications.
Golden Oak Grain
Warm yellow-brown timber grain for exterior cladding and soffits.

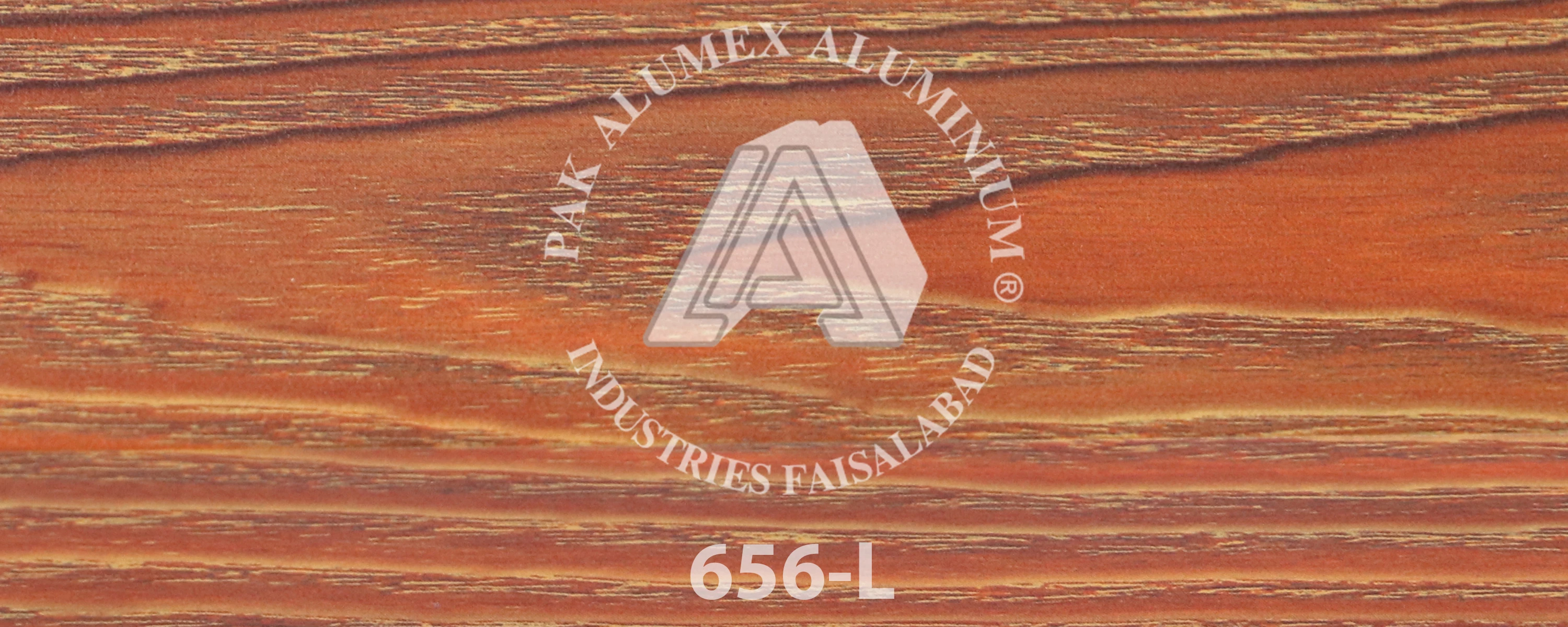

Royal Walnut
Deep brown finish suited for executive office screens and main doors.

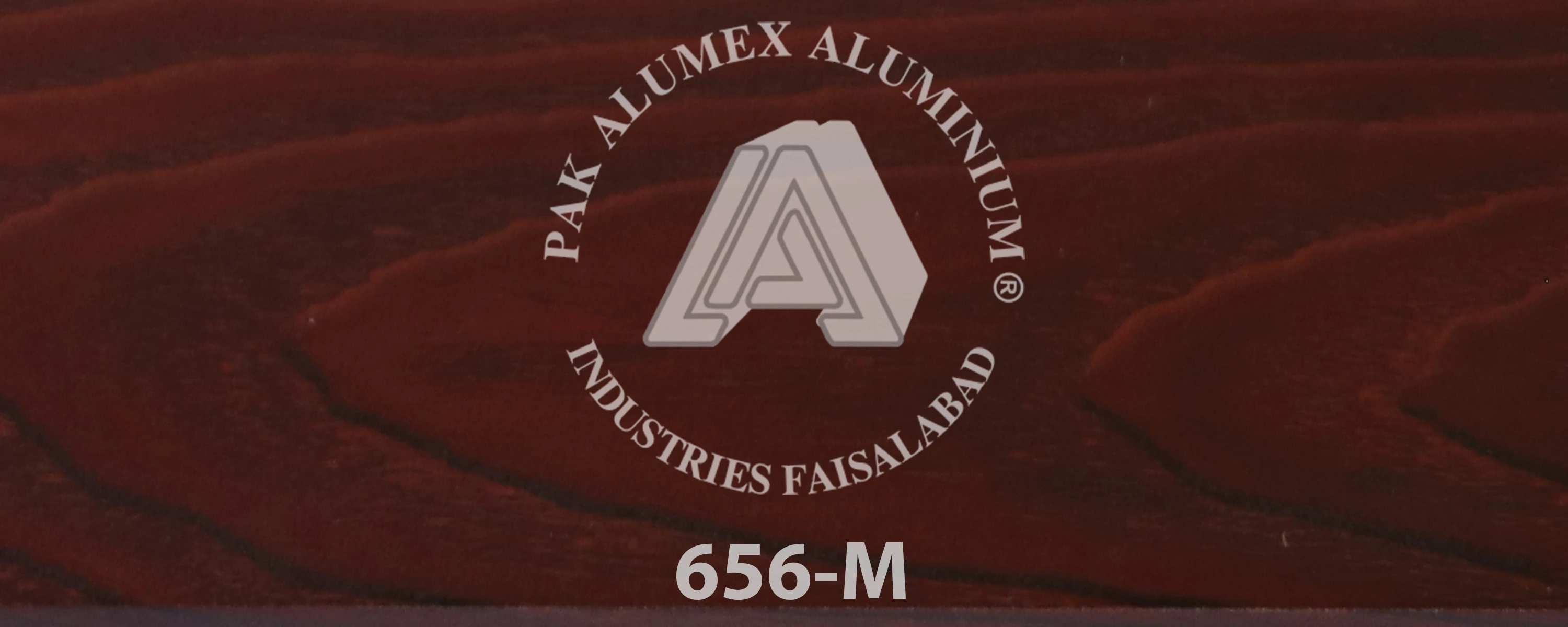

Burma Teak
Classic teak tone optimized for louver panels and balcony railings.

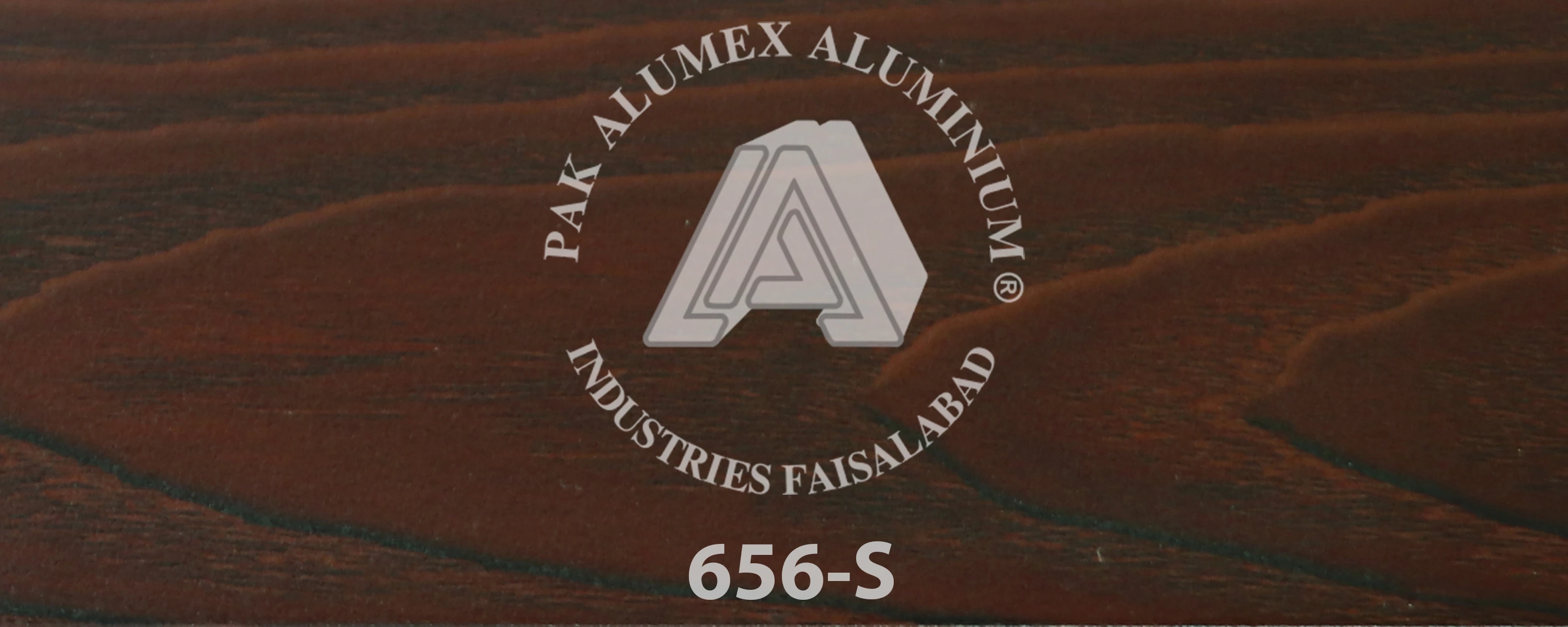

Dark Chestnut
Rich dark tone providing high architectural contrast on light facades.

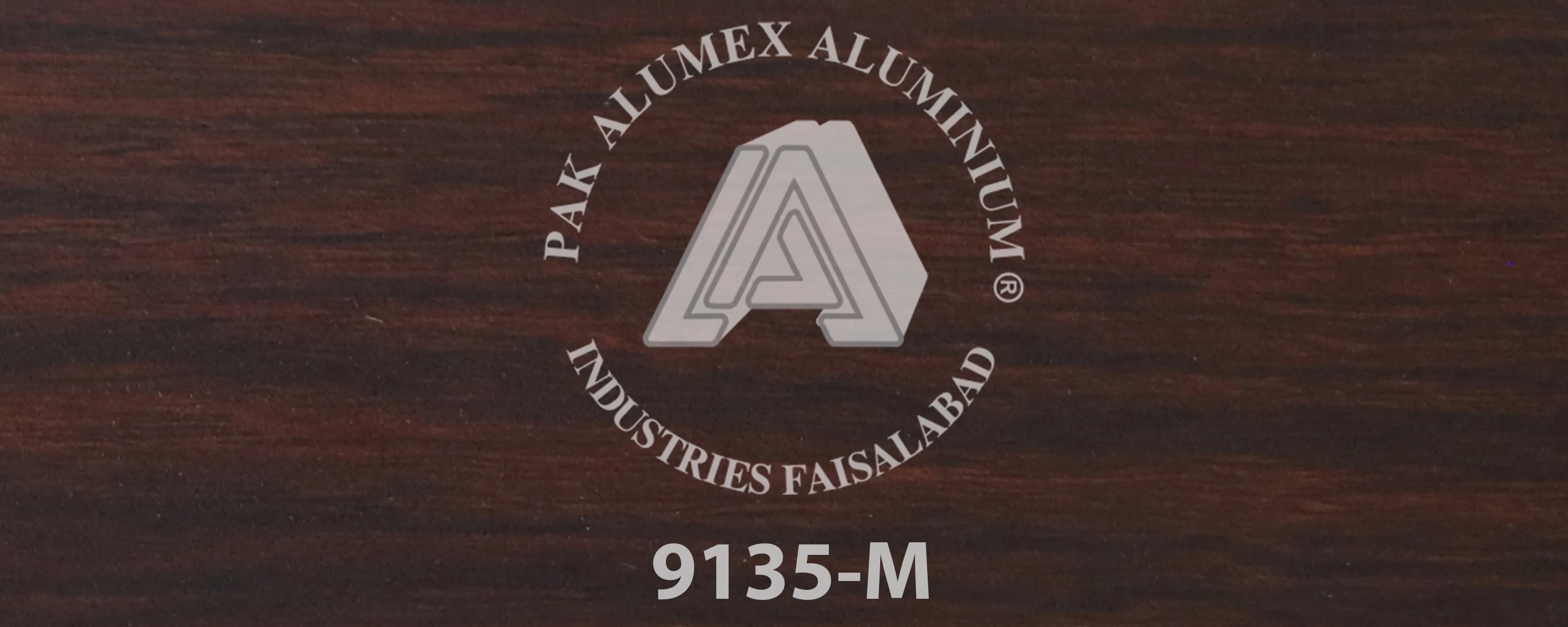

Natural Pine
Light softwood pattern ideal for interior ceiling baffles and partitions.

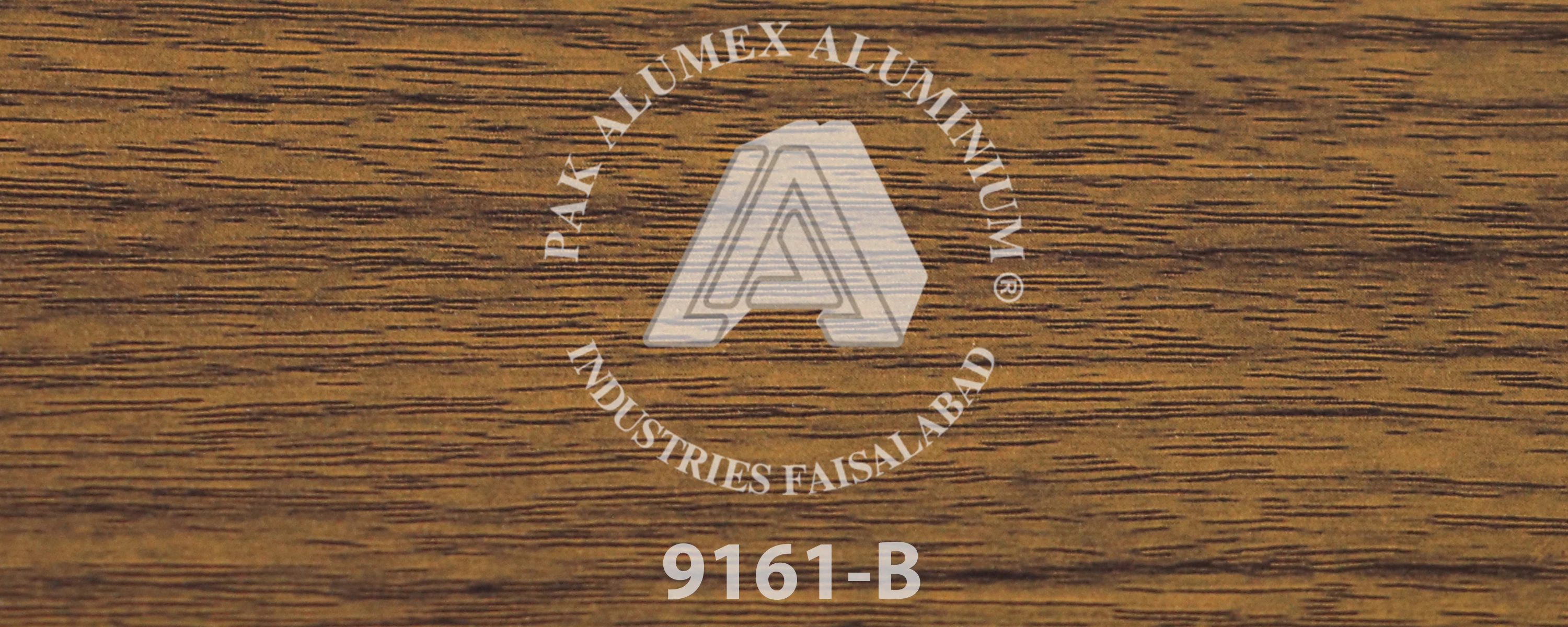

Vintage Mahogany
Reddish-brown wood pattern specified for classical hospitality projects.

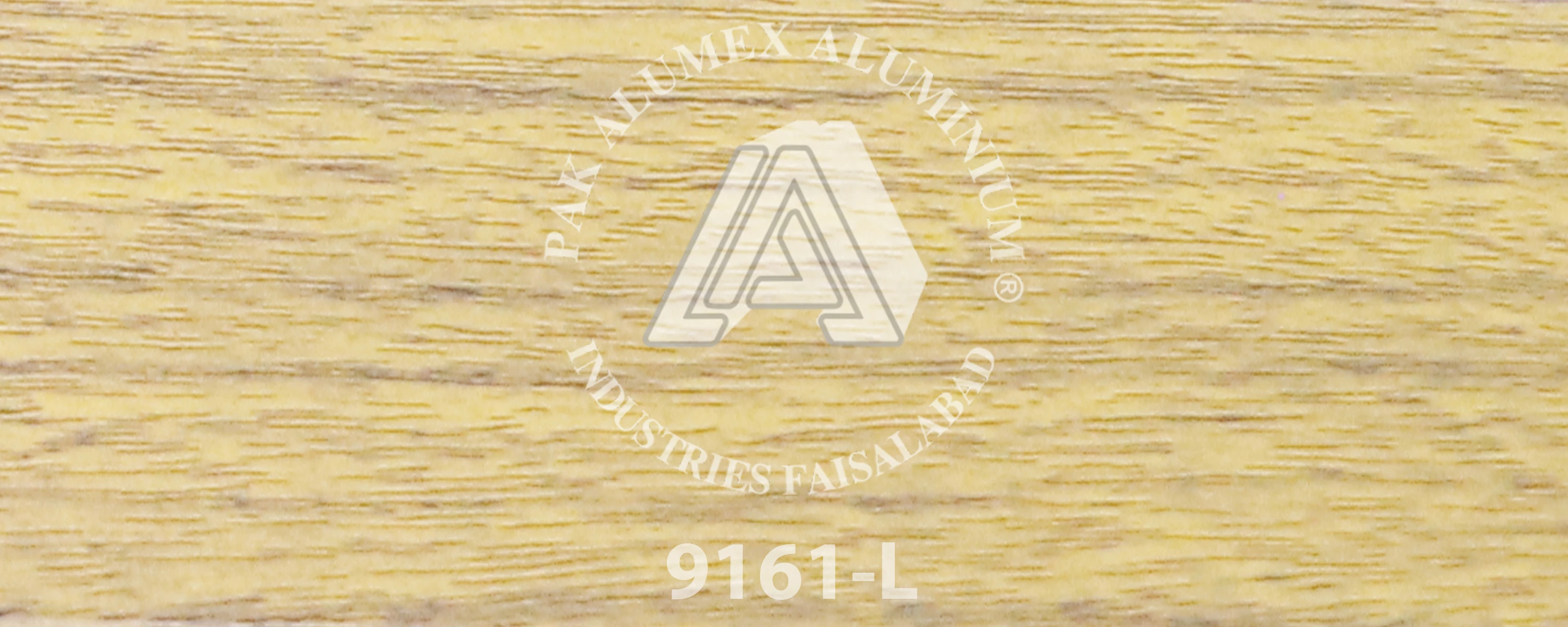

Weathered Cedar
Muted, natural exterior finish for contemporary residential villas.
Classic Ash
Straight-grain timber pattern ideal for decorative louver tubes.
Smoked Walnut
Modern dark-tinted wood texture for commercial storefront framing.
Bleached Oak
Nordic light wood aesthetic for modern retail interiors and wall slats.

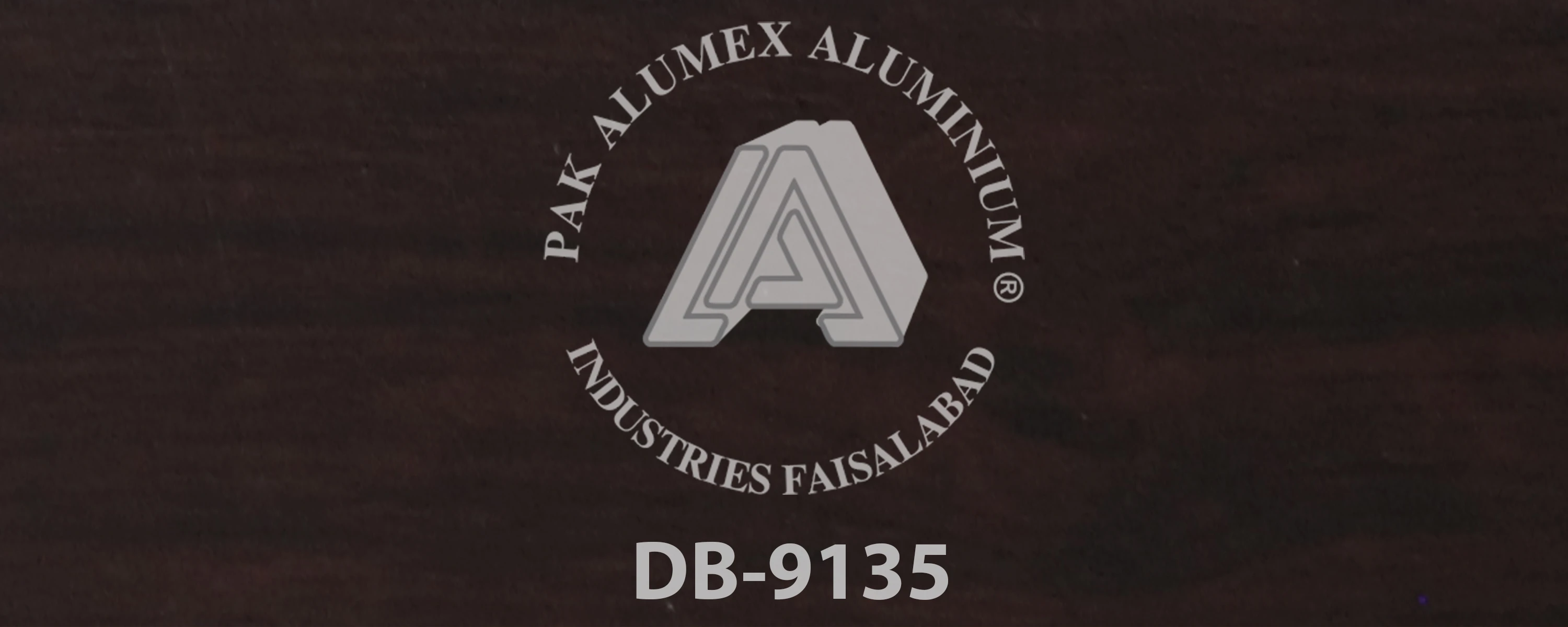

American Cherry
Warm medium-red finish for decorative pergola beams and columns.

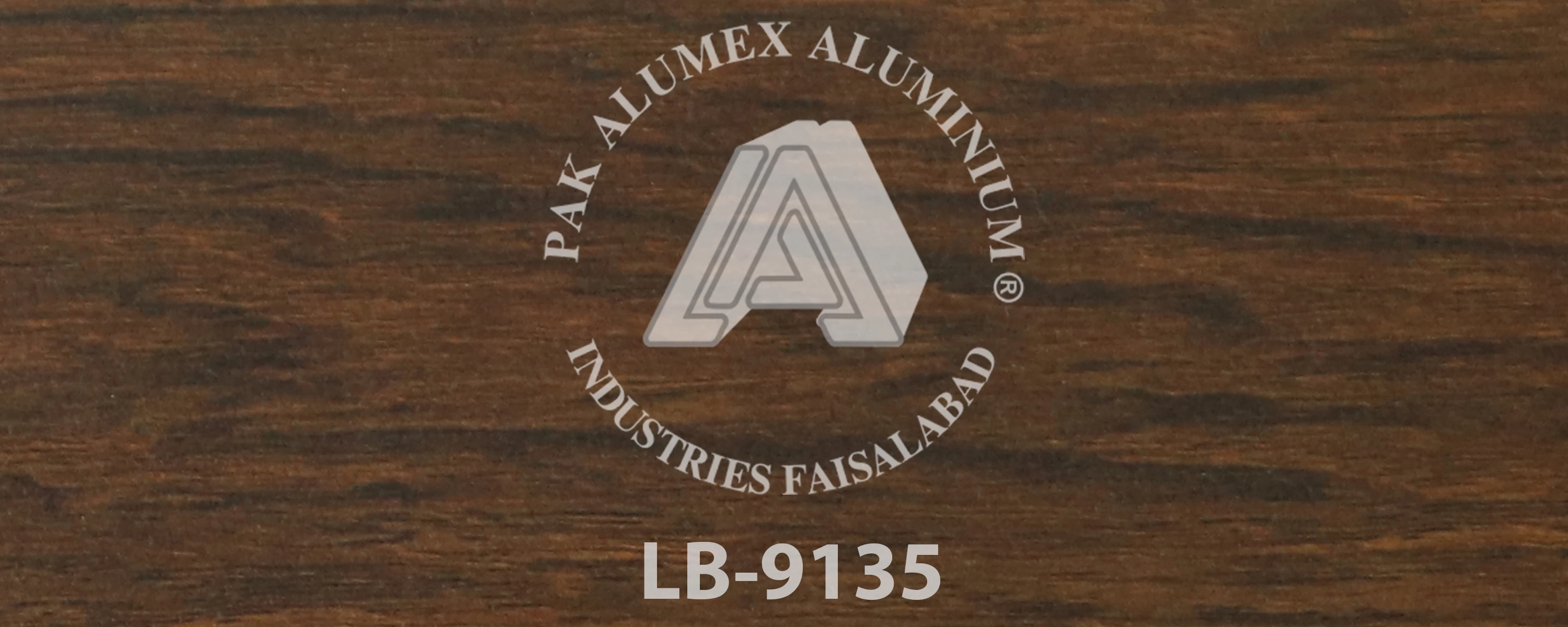

Rustic Teak
Pronounced grain structure designed for outdoor feature screens.

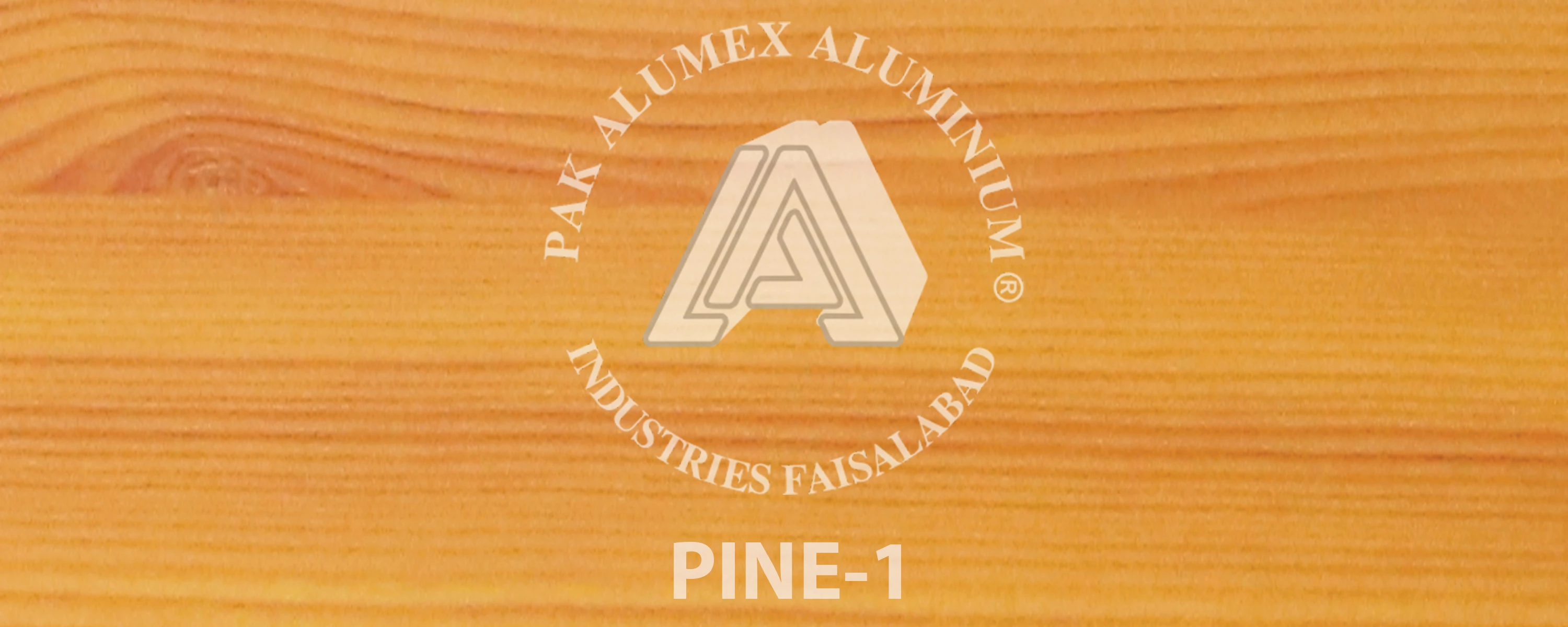

Ebony Timber
Deep charcoal-black wood grain for high-end luxury facades.

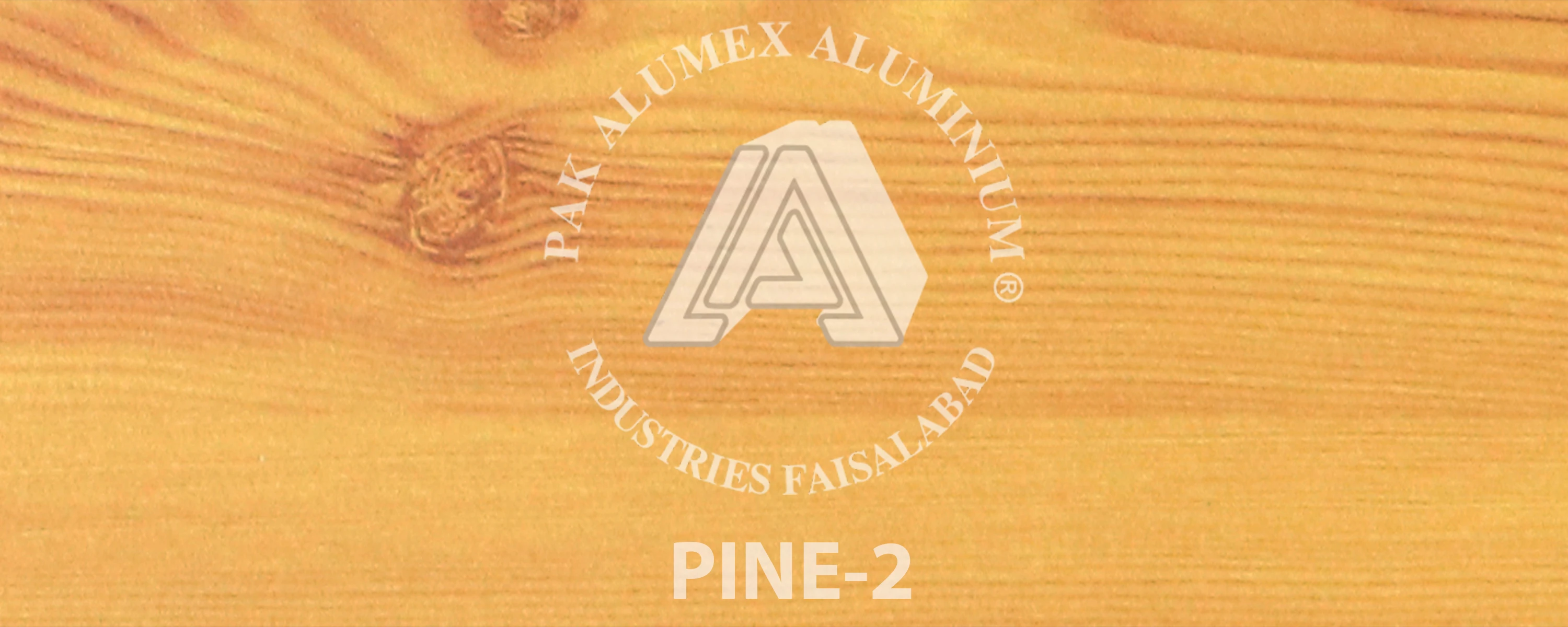

Bespoke Grain Matching
Custom film pattern development available for large commercial orders.
Technical Performance Standards
Pak Alumex tests every batch of wood texture aluminium extrusions against international architectural coating and mechanical testing benchmarks.
| Test Parameter | Testing Standard / Method | Specification & Performance Value |
|---|---|---|
| Base Alloy & Temper | ASTM B221 / EN 755-2 | 6063-T5 (Standard), 6063-T6 (High Structural Load) |
| Powder Base Thickness | ISO 2178 / ASTM D1186 | 60 – 80 microns (µm) dry film build |
| Sublimation Depth | Microscopic Sectioning | 20 – 30 microns embedded pigment penetration |
| Adhesion Strength | ISO 2409 / ASTM D3359 | Class 0 / 5B (No film detachment after cross-hatch tape test) |
| Impact Resistance | ISO 6272 / ASTM D2794 | 50 kg·cm direct impact without cracking or flaking |
| Corrosion Resistance | ASTM B117 Neutral Salt Spray | Passes 1,000 Hours exposure without blister formation |
| Boiling Water Resistance | Qualicoat Specifications | 2 Hours in boiling water with zero adhesion loss or discoloration |
| Surface Hardness | ASTM D3363 Pencil Hardness | Minimum 2H hardness rating |
Recommended Project Applications
Engineered to integrate seamlessly with standard fabricator tooling, gasket grooves, and structural bracket connections.
Facade Cladding & Soffits
Interlocking aluminium tongue-and-groove planks used for high-rise exterior cladding, entrance canopy soffits, and feature walls.
Sunshades & Louvers
Aerofoil and box-section louver blades providing solar control and building elevation texture without structural weight penalties.
Window & Door Framing
Thermally broken and non-thermal casement, sliding, and bi-fold profile sets delivering rich wood interior visuals.
Pergolas & Outdoor Structures
Structural beam and rafter sections for weather-proof garden pergolas, shade structures, and decorative boundary fencing.
Explore Other Architectural Finishes
Compare wood texture sublimation with our full range of in-house anodizing and architectural powder coating options.
Anodizing Finish
Controlled oxide layer (10–25 µm) grown into the aluminium substrate. Available in silver, champagne, bronze, and anodized black for extreme metallic durability.
Powder Coating
Full RAL color palette executed in 60–80 µm architectural polyester powders with matt, gloss, and textured surface options for commercial facades.
